umpheki wasekhishini ukupheka umshini wokupheka irobhothi ushintshe ukungabaza imoto Isithombe esifakiwe

umpheki wekhishi ukupheka umshini wokupheka werobhothi washintsha injini yokungabaza

Incazelo emfushane:

I-800W high speed switched reluctance motor kanye nomshayeli 35000rpm speed mixer home appliance motor

2. Uhlu olubanzi lokulawulwa kwejubane, ukusebenza kwesikhathi eside ngesivinini esiphansi: Ingasebenza ngaphansi komthwalo isikhathi eside ebangeni ukusuka ku-zero ukuya kusivinini esikhulu, futhi ukukhuphuka kwezinga lokushisa kwemoto nesilawuli kungaphansi kwalokho okukaliwe. umthwalo.

3. I-torque yokuqala ephezulu, yamanje ephansi yokuqala: lapho i-torque yokuqala ifinyelela ku-150% we-torque elinganisiwe, isiqalo samanje singama-30% kuphela wamanje olinganisiwe.

Thumela i-imeyili kithi

Imininingwane Yomkhiqizo

Omaka bomkhiqizo

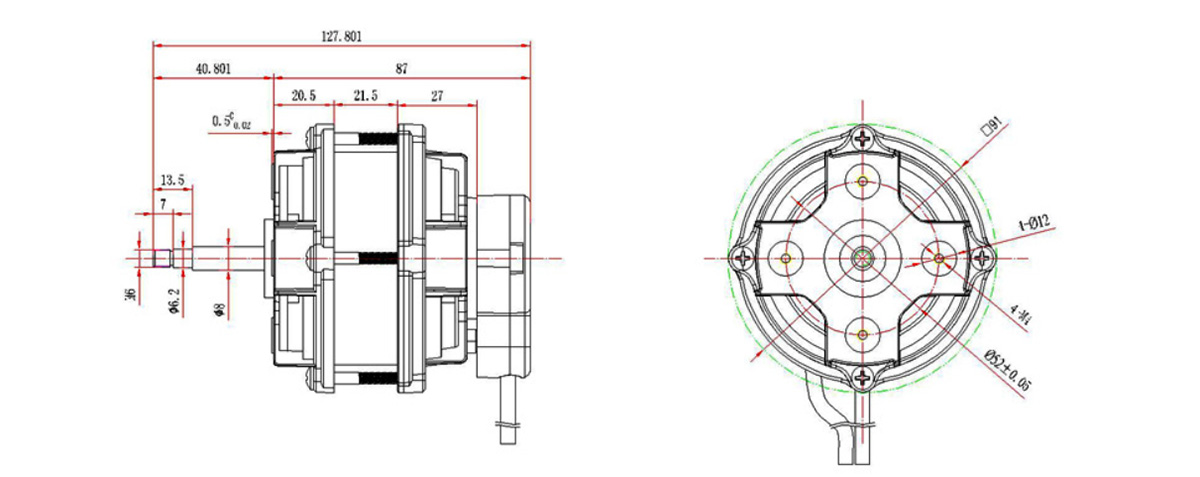

Motor Parameters

I-Voltage yokusebenza	I-DC300V
Ikalwe okwamanje	2.8±10%A
Ubuningi bamanje	5.4A
I-voltage yokuqala	I-DC23V~25V
amandla alinganiselwe	700±10%W
Isivinini esilinganiselwe	35000±10%RPM
Amandla angasebenzi	<100W
inombolo yezigxobo	2
torque	0.2NM
ukusebenza kahle	80%±10%
ukuhamba	I-Axial CW
umsindo	96dB MAX,<30cm
isisindo	1.68Kg
ukuzala	2 amabhola
ukulawula	Inzwa yehholo
Faka	intaba ye-flange

Isakhiwo Sezimoto

1. Ukwakhiwa kwesistimu ye-motor drive eshintshayo yokungafuni

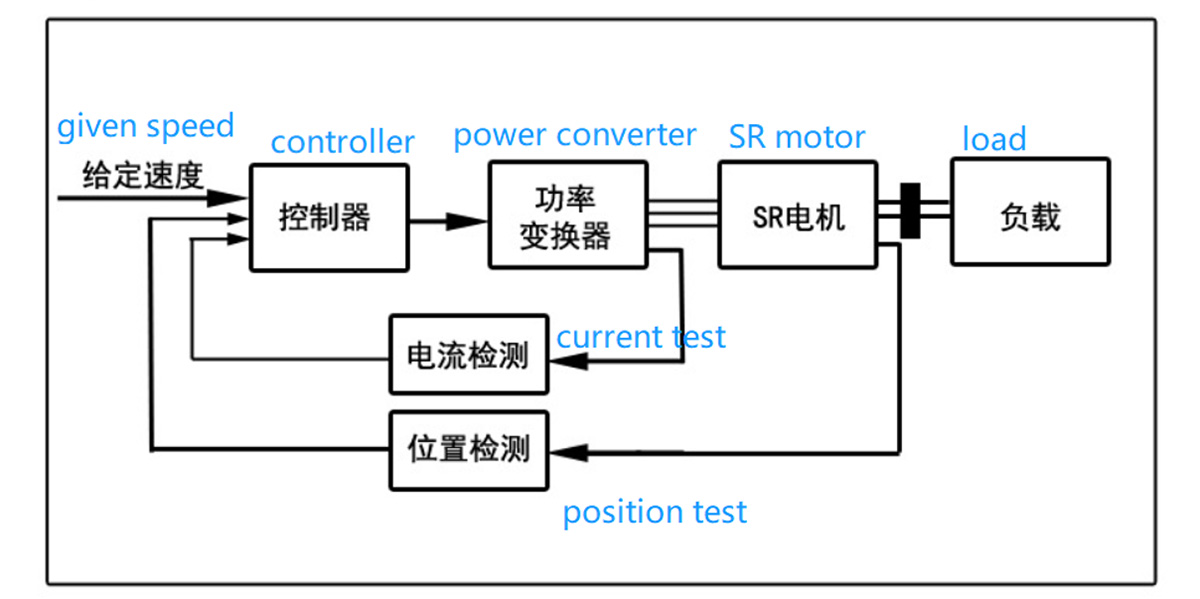

I-switched reluctance motor drive system (SRD) yakhiwa ikakhulukazi i-switched reluctance motor, isiguquli samandla, isilawuli kanye nomtshina.

2.Ushintshe injini yokungabaza
Ama-SR motors angaklanywa abe yisigaba esisodwa, izigaba ezimbili, izigaba ezintathu, izigaba ezine kanye nezigaba eziningi ezinezinombolo zezigaba ezihlukene, futhi kukhona isakhiwo sezinyo elilodwa ngesigxobo kanye nesakhiwo sezinyo eziningi ngesigxobo ngasinye, umoya we-axial igebe, i-radial air gap kanye ne-axial air gap.Isakhiwo se-radial hybrid air gap, i-rotor yangaphakathi nesakhiwo se-rotor yangaphandle, ama-SR motors angaphansi kwesigaba sesithathu ngokuvamile awanawo amandla okuziqalisa.Inombolo enkulu yezigaba inenzuzo ukunciphisa ukuguquguquka kwe-torque, kodwa iholela ekwakhiweni okuyinkimbinkimbi, amadivaysi amaningi okushintsha okuyinhloko kanye nezindleko ezikhulayo.Njengamanje, izigaba ezimbili ze-6 /4-pole structure kanye nesigaba sesine se-8 /6 -level structure zisetshenziswa kabanzi.

Isakhiwo esijwayelekile 3-isigaba

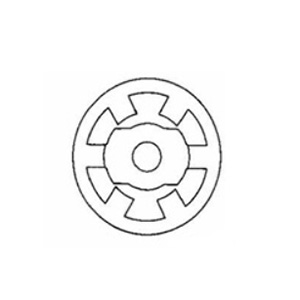

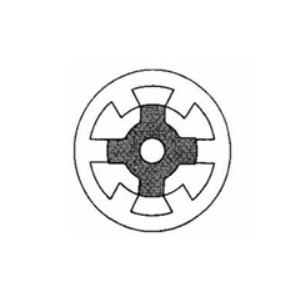

6/4 polar SR motor

3-isigaba 6/2
i-polar SR motor

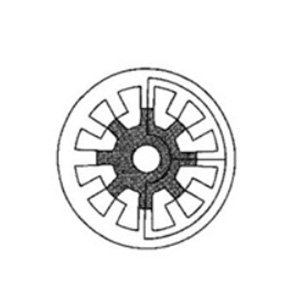

3-isigaba 6/8
i-polar SR motor

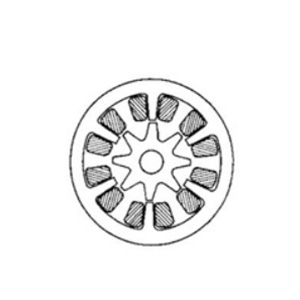

3-isigaba 12/8
i-polar SR motor

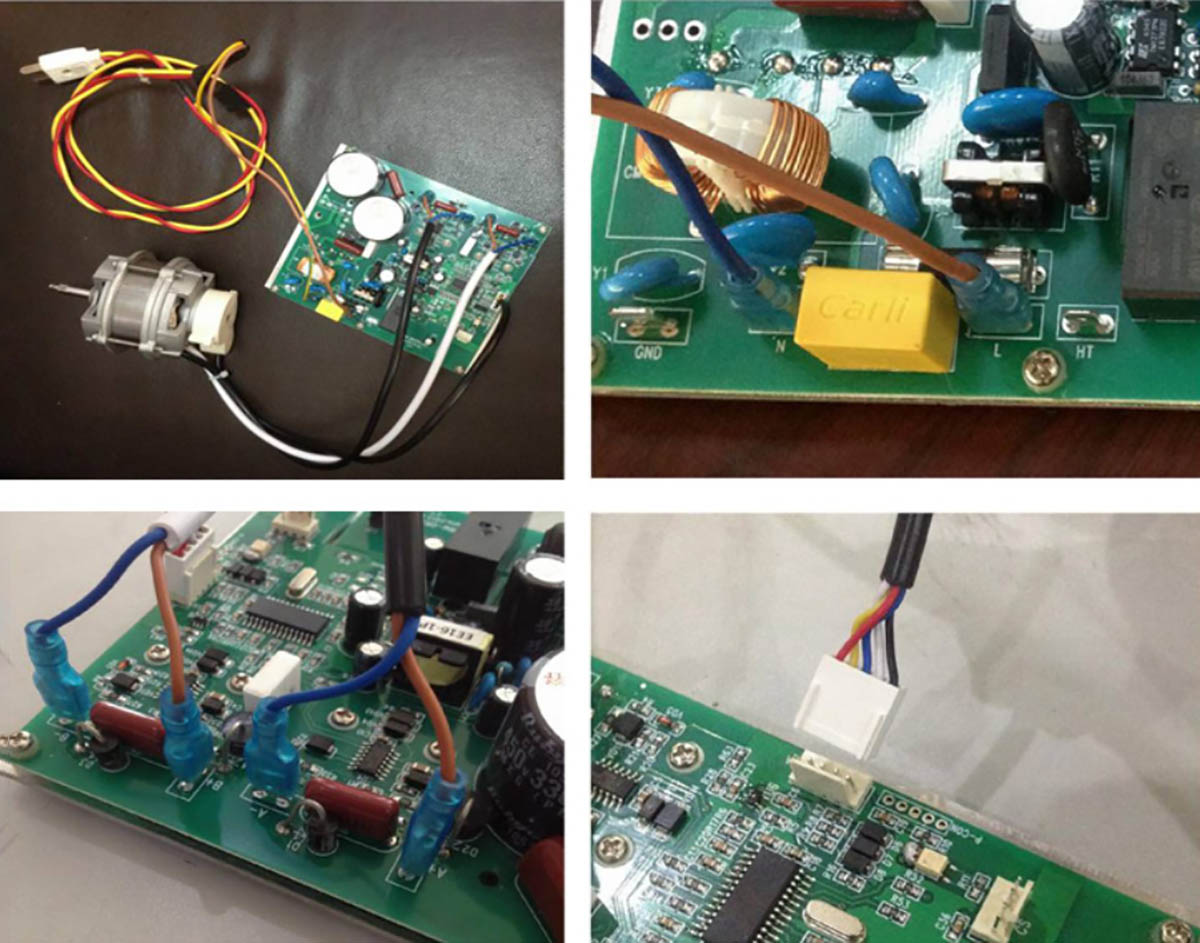

3. Umdwebo wezintambo ezibonakalayo wemoto nomshayeli

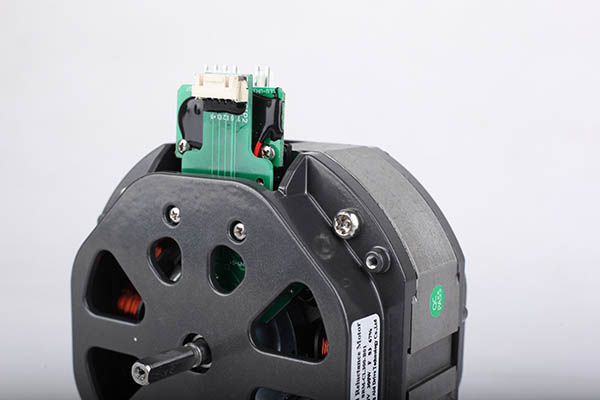

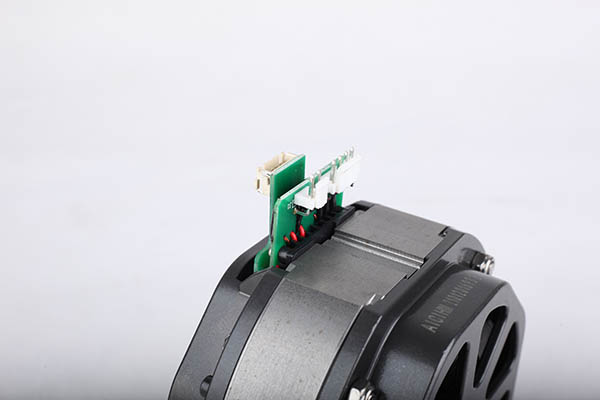

Isithombe Somkhiqizo

Izintambo zesigaba sezimoto

Mnyama (Brown /A+ Blue /A-), Mhlophe (Brown /A+ Blue /A- ), ubude bentambo L=380 ± 50mm
Izintambo zehholo:
Okubomvu ( +5V), okumnyama ( GND), okuphuzi ( SA ), okuluhlaza okwesibhakabhaka ( SB), okumhlophe ( SC ), ubude bomugqa L= ubude bomugqa L=380 ± 50mm
Isitoreji: 5 ℃ ~40 ℃, umswakama <90%
Isigaba se-insulation: F
Ikhoyili engena-crack ijika imizuzu emi-3 ku-130% wamandla kagesi.
Impilo yokusebenza: amahora angama-2000 ngaphansi kwezimo ezijwayelekile zokusebenza.
I-axial displacement kufanele ibe ngaphansi kuka-0.02mm lapho injini isebenza.

Izici zezimoto

1.Ukusebenza kahle kwesistimu: Ebangeni layo elibanzi lokulawula isivinini, ukusebenza kahle kukonke okungenani kuphakeme ngo-10% kunezinye izinhlelo zokulawula isivinini , futhi ukusebenza kahle okuphezulu kubonakala kakhulu ngesivinini esiphansi kanye nomthwalo ongalinganiselwe.
2.Uhlu olubanzi lokulawulwa kwejubane, ukusebenza kwesikhathi eside ngesivinini esiphansi: Ingasebenza ngaphansi komthwalo isikhathi eside ebangeni ukusuka ku-zero kuya kusivinini esikhulu, futhi ukukhuphuka kwezinga lokushisa kwemoto nesilawuli kungaphansi kunomthwalo olinganiselwe.
3.I-torque yokuqala ephezulu, yamanje yokuqala ephansi: lapho i-torque yokuqala ifinyelela ku-150% we-torque elinganisiwe, okwamanje isiqalo singama-30% kuphela wamanje olinganisiwe.
4. Ingaqala futhi ime njalo, futhi ishintshe phakathi kokuzungezisa phambili nokuhlehlayo: ingaqala futhi ime njalo, futhi ishintshe phakathi kokuzungezisa phambili nokuhlehla njalo.Uma kuneyunithi yokubhuleka futhi amandla okubhuleka ehlangabezana nemfuneko yesikhathi, ukushintsha kokuqala nokuhlehla kungafinyelela izikhathi ezingaphezu kuka-1,000 ngehora.
5. Umthamo onamandla wokulayisha ngokweqile: lapho umthwalo umkhulu kakhulu kunomthwalo olinganiselwe isikhathi esifushane, isivinini sizokwehla, amandla aphezulu okukhipha azogcinwa, futhi ngeke kube khona into edlulayo.Uma umthwalo ubuyela kokujwayelekile, isivinini sibuyela esivinini esimisiwe.
6.Amandla emishini nokuthembeka kuphakeme kunezinye izinhlobo zamamotho.I-rotor ayinawo omazibuthe baphakade futhi ingaba nokukhuphuka kwezinga lokushisa okuphezulu okuvumelekile.
