24 ~ 72V DC uhlobo 1t imfoloko eqondile ibhalansi esindayo kagesi forklift motor
Incazelo Yomkhiqizo

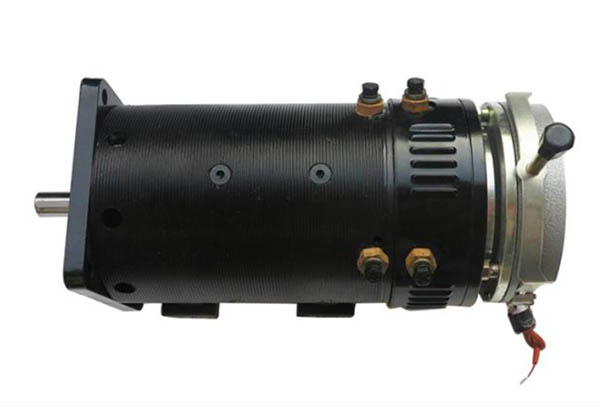

Isakhiwo se-forklift motor kagesi silula kunaleyo ye-forklift evuthayo yangaphakathi.Isithombe sibonisa i-1DC yohlobo lwe-1t ibhalansi yemfoloko esindayo kagesi ye-forklift motor.
Ukwakhiwa okuyisisekelo kwe-forklift motor kagesi kuqukethe lezi zingxenye ezilandelayo:
1.Iyunithi yamandla: ibhethri pack.Ama-voltage ajwayelekile ebhethri angu-24, 30, 48, kanye no-72V.
2.Uhlaka: luhlaka lwe-forklift, oluboshwe ngensimbi nensimbi.Cishe zonke izingxenye ze-forklift zifakwe kuhlaka.Ingaphansi kwemithwalo ehlukahlukene ngesikhathi sokusebenza, ngakho kufanele ibe namandla anele nokuqina.
3. Ukudluliselwa: Amandla emoto adluliselwa esondweni lokushayela le-forklift.
4. Uhlelo lokuqondisa: lawula indlela yokushayela ye-forklift.
5. Uhlelo lwamabhuleki: yenza i-forklift drive yehlise ijubane futhi ime.
6. Isistimu yezimoto nekagesi: Isistimu kagesi ilawula injini ngokusebenzisa izakhi ezihlukahlukene ukuze kuzuzwe ukuqala, ukuma, ukubuyisela emuva kanye nokulawulwa kwesivinini se-forklift, kanye ne-oil pump motor noma i-hydraulic pressure.
XINDA DC Motor Catalogue
| I-XINDAIKHATHALOGU YE-DC MOTOR | ||
| Amandla alinganiselwe | Into No. | Isithombe somkhiqizo |
|
| Electric Forklift Vehicle Motor |  |
|
| I-DC traction Electric Motor | |
| 7KW | I-DC Traction Electric Motor Model 242ZDC 242ZD706H15 |
|
| 5KW | I-DC Traction Electric Motor Model 192ZDC 192ZD525H9 |
|
| 4KW | I-DC Traction Electric Motor Model 170ZDC 170ZD402H2A3 |
|
|
| I-DC MOTOR yemoto kagesi |
|
|
| I-Electric Forklift Electric Motor |
|
|
| I-Electric Forklift Electric Motor |  |
| Ishidi lokucaciswa kwe-XINDA DC Motor Series | ||||||||
| Amandla Alinganiselwe (KW) | 3 | 4 | 4.5 | 5 | 6 | 7 | 7.5 | 10 |
| I-Battery Voltage (VDC) | 48/60/72 | 72 | 96/144 | |||||
| Layisha Okuningi | 2.5 | |||||||
| Ilinganiselwe manje (A) | 73/58.4/48.7 | 96.8/77.5/64.5 | 109/87.2/72.7 | 118/94.7/78.9 | 138.9/111/92.5 | 108 | 116 | 116/77 |
| I-Torque elinganiselwe (NM) | 10.2 | 13.6 | 15.3 | 17 | 20.5 | 23.9 | 25.6 | 34 |
| Isivinini esilinganiselwe (RPM) | 2800 | |||||||
| Isivinini Esiphakeme (RPM) | 4500 | |||||||
| Uhlelo lokusebenza | S2:60 imiz | |||||||
| I-Insulation Level | H | |||||||
| Indlela Yokupholisa | ukupholisa kwemvelo/ukupholisa umoya | |||||||
| Ukusebenza kahle (100% LOAD) | 85 | 86 | 86 | 88 | 88 | 88 | 90 | 90 |
| Izinga Lokuvikela | IP23 (IP44) | |||||||
| Isicelo | umgibeli onesivinini esiphansi/imoto yezinto zokusebenza/imoto yegalofu/imoto yokubona indawo/iveni yamaphoyisa/iloli/isitaki, njll. | |||||||
